Characteristics of TCB bearings > Chamfer dimension

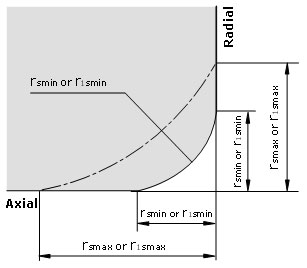

Chamfer dimensions
rs： Single chamfer dimension of bearing
rs： Single chamfer dimension of specified ring(or
  osition) of bearing
rsmin，r1smin：rs or r1s Permitted minimum single
chamfer dimension of rs or r1s

rsmax，r1smax：rs or r1s Permitted maximum single
chamfer dimension of rs or r1s

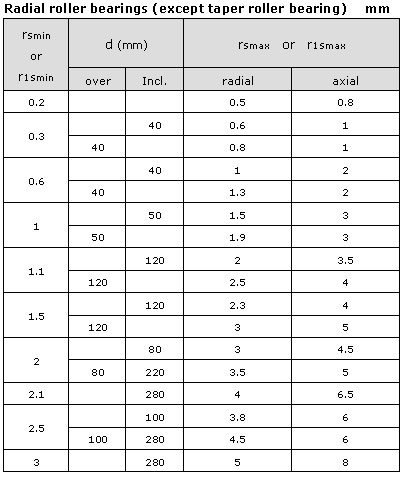

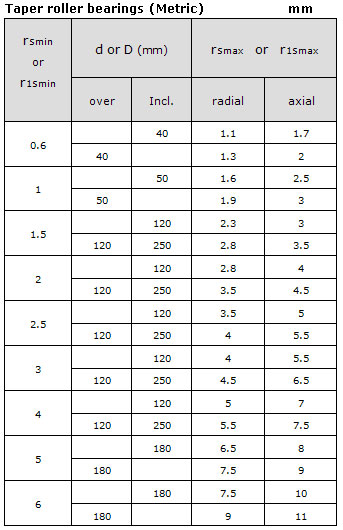

Permitted limits for chamfer dimensions
